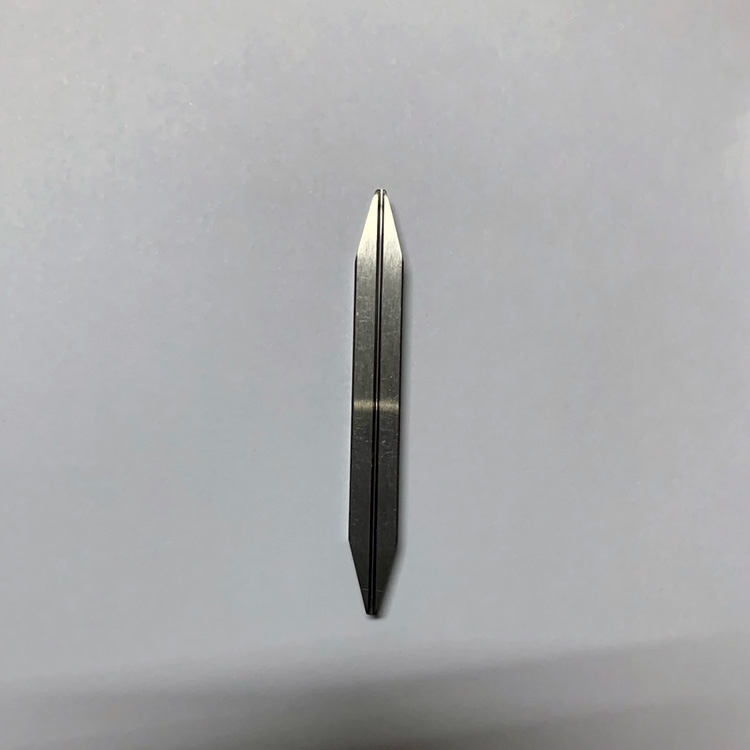

Wire Guide
Function:
• Aligns wire into forming area
• Prevents deviation
Key Points:
• Critical for consistency
• Often underestimated but very important
Forming Process (End-to-End)

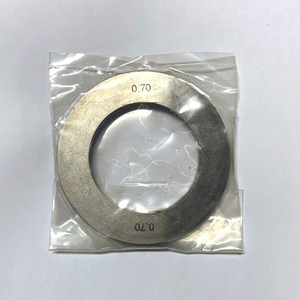

1. Feeder Roller → Feeding
2. Wire Guide → Alignment

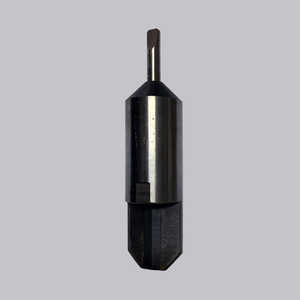

3. Quill → Rotation control

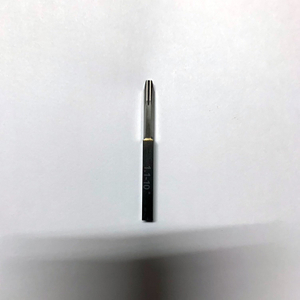

4. Coiling Tools → Coil forming

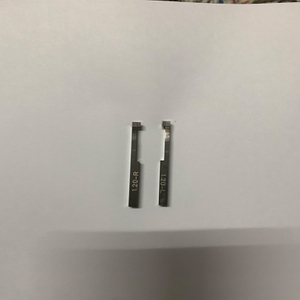

5. Bending Tools → Angle shaping
6. Support Tools → Stabilization

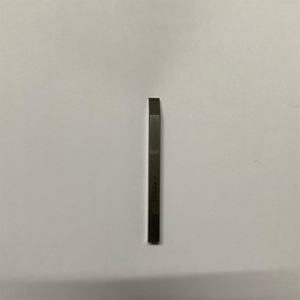

7. Cutter → Final cut
Key Production Insights
1. Forming Accuracy =
Feeder Roller + Coiling Tools + Quill
→ Core of precision control
2. Complex Parts =

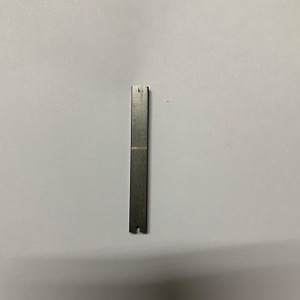

Bending Tools + Groove Tools
→ Critical for irregular shapes
3. Stable Quality =

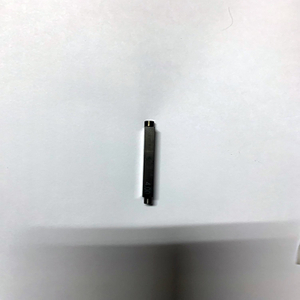

Wire Guide + Arbor
→ Determines yield rate
Common Issues & Causes
Spring deformation
→ Wire guide or coiling tool misalignment
Inconsistent length
→ Feeder roller slipping
Unstable angles
→ Bending tool position or insufficient support
Rough cut / burrs
→ Worn cutter or incorrect blade angle
